Sauer High-Pressure Piston Compressors
Dependable up to 500 bar — anywhere, anytime, any gas.
nothing here
AIRPLUS Industrial installs these oil-lubricated piston compressors ANYWHERE pressures up to 500 barg (~7250psi) is required – Continuous Operation with ANY GAS

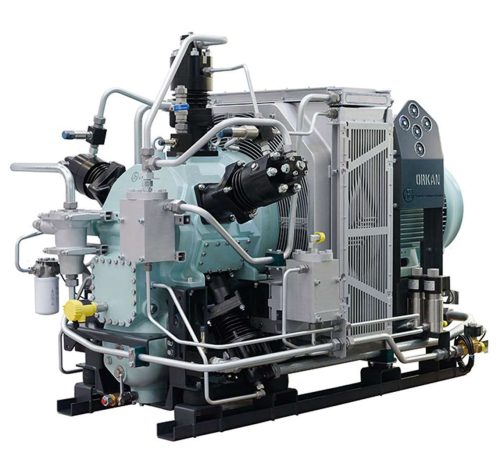

Sauer High-Pressure Piston Compressors
J.P. Sauer & Sohn Maschinenbau GmbH
Simply dependable – Reliability and quality have been Sauer’s guiding principles for over 130 years. Their customers know they can trust them to deliver. These principles act as a guide in the development and manufacturing of state-of-the-art high-pressure compressors, a comprehensive service offering, and customer-centric support.
Sauer is one of the leading vendors in the industrial, offshore, commercial shipping and defence sectors, and maintains a service network worldwide.
High-pressure know-how — made in Germany
The renowned Sauer range of piston compressors is developed and manufactured by specialists from our centre of excellence at the headquarters of J.P. Sauer & Sohn Maschinenbau GmbH in Kiel, Germany. These oil-lubricated machines are available for pressures up to 500 barg and designed for continuous operation. The reciprocating models allow compression in up to five stages. A total of up to six cylinders are mounted in a star, V or W arrangement. The compressors are the ideal solution for operation at atmospheric suction pressure or use as gas-tight boosters with pre-pressures up to 25 barg.
Sauer Piston Compressor Types
| Series | Suction pressure barg | Final pressure barg | Volume Flow m³/h | Rated Power kW | Media | Markets |
|---|---|---|---|---|---|---|
 |
10 – 40 | 8 – 80 | 3 – 18.5 | Air, Nitrogen |     |
|
 |
10 – 80 | 75 – 315 | 15 – 90 | Air, Nitrogen, Helium, Natural Gas (CNG), Bio-methane | |
|
 |
10 – 40 | 100 – 435 | 35 – 105 | Air, Nitrogen | |
|
 |
30 | 180 – 460* | 37 – 98 | Air | |
|
 |
10 – 100 | 60 – 395 | 15 – 90 | Air, Nitrogen | |
|
 |
max. 5 | 150 – 400 | 10 – 25 | 5 – 15 | Air, Nitrogen, Helium, Natural Gas (CNG), Bio-methane | |
 |
50 – 400 | 20 – 130 | 11 – 55 | Air, Nitrogen, Helium, Natural Gas (CNG), Bio-methane, Hydrogen | |
|
 |
max. 16 | 100 – 500 | 120 – 500 | max. 110 | Air, Nitrogen, Helium – other gases on request | |
 |
50 – 400 | 50 – 140 | 20 – 75 | Air, Nitrogen | |
|
 |
max. 25 | 16 – 500 | 200 – 1,000 | 120 – 250 | Air, Nitrogen, Helium, Natural Gas (CNG), Bio-methane, Hydrogen | |
 |
5 – 15 | 50 – 225 | 8 – 40 | Air | |
Contact Us - We Can Help
Choosing the right compressor for your application is dependent upon many factors. AIRPLUS Industrial has 30+ years of experience in designing, sourcing, installing and maintaining these systems — we can help you choose the right system for your facility.
