Modular MediaFilter Horizontal Mist Collector

Space-Saving Ceiling-Mount Mist Collection

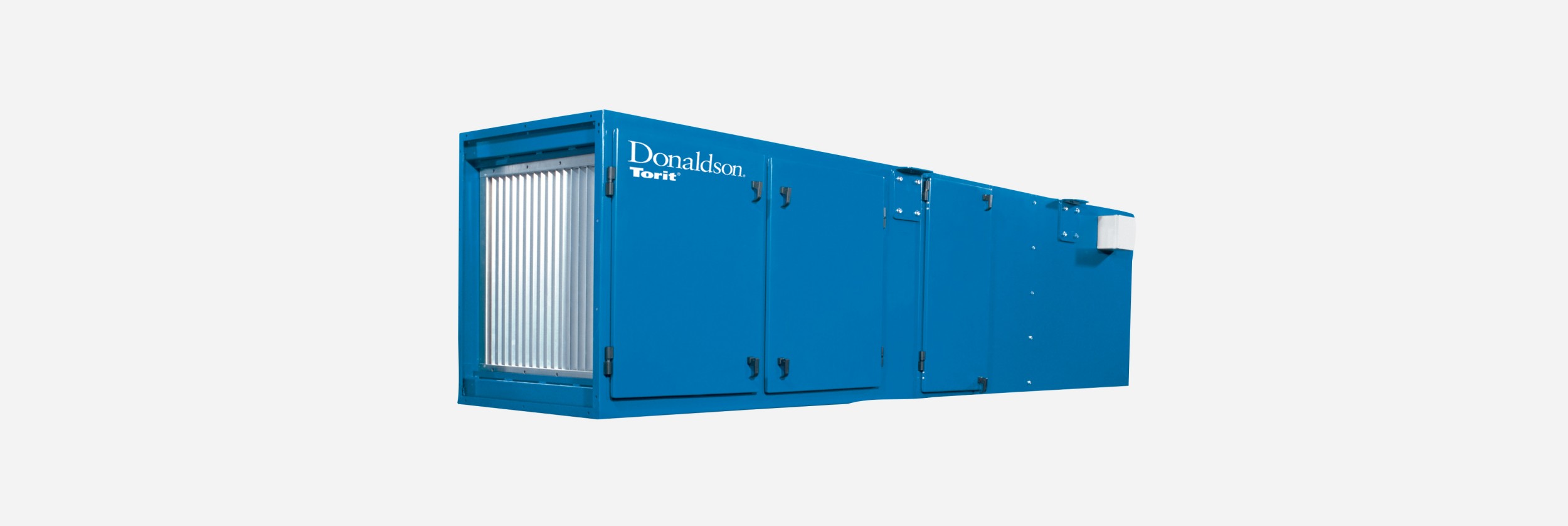

Donaldson Modular MediaFilter Horizontal Mist Collector hero image | AIRPLUS Industrial

High-performance mist collectors for ambient or source capture of mist, smoke, dust, fume & odours from grinding, wet machining, soldering & metalworking applications.

Modular MediaFilter Horizonatal Mist Collectors

The Modular MediaFilter™ Horizontal mist and smoke collector provides flexible, high performance mist collection for a wide variety of applications including grinding, wet machining, rubber machining, die casting, wet grinding or soldering.

The Modular MediaFilter Horizontal mist collector system adapts to changing needs such as smoke, dust and fume filtration, saving the cost of a new filtration system. Whether you require horizontal or vertical configuration, we can design and supply a mist collector system to meet your needs.​

Features

  • Modular design customizes unit to specific application
  • Offers a variety of design layouts and filter choices for both flexibility and expandability
  • Wide range of power packs, prefilters, filters, and module options
  • Ceiling mount, horizontal design saves valuable floor space
  • Design features provide easy filter changeout and simple maintenance
  • Available in ambient or source capture models
  • Provides a cleaner work environment for maximum productivity
  • Helps support OSHA Clean Air Standards
Donaldson Modular MediaFilter™ Horizontal Mist Collector | AIRPLUS Industrial
Modular MediaFilter™ Horizontal Mist Collector

Standard & Optional Features

40% ASHRAE Multi-VEE

Prefilter for dry or slightly wet dust or gas and vapor (609.6 x 609.6 x 101.6 mm / 24 x 24 x 4 in.).

Impinger

101.6 mm / 4 in. prefilter for light to heavy mist or dust collection in wet and dry grinding.

Aluminum Mesh Prefilter

Aluminum mesh filter works to trap large particles (609.6 x 609.6 x 25.4 mm / 24 x 24 x 1 in.).

Optional First-Stage High Efficiency Filter

101.6 mm / 4 in. prefilter for heavy mist applications.

Primary Filter Module

Primary filter module for filtering mist, smoke, dust, and fumes.

95% ASHRAE VEE-Bag

914.4 mm / 36 in. fiberglass vee-bag captures the remaining mist particles.

HEPA Filter Module

Secondary afterfilters for heavy smoke, dust, and fume.

Powder Coat Finish

Powder coating finish is durable and chemical resistant.

Power Pack with Direct Drive Fans

Equipment Options for Source Collector Modules

First-Stage High Efficiency Filter
(609.6 x 609.6 x 101.6 mm / 24 x 24 x 4 in.)
Multiple power pack options, including explosion-proof motors
First-Stage Multi-VEE Filter
(609.6 x 609.6 x 101.6 mm / 24 x 24 x 4 in.)
P-Trap assembly
HEPA/95% DOP Filter Module
(609.6 x 609.6 x 292.1 mm / 24 x 24 x 11.5 in.)
P-Trap with Y-Strainer assembly
Carbon Filter Module3.8 L / 1 gal container​

Resources

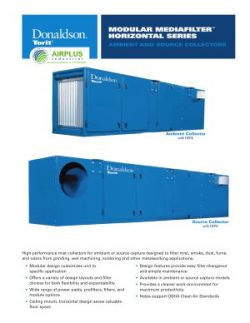

modular-MediaFilter-horizontal-collector-brochure
Click image to Download Brochure

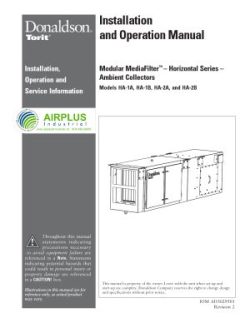

Donaldson Modular MediaFilter Horizontal Ambient Mist Collector installation & operation manual download icon | AIRPLUS Industrial
Click image to Download Manual

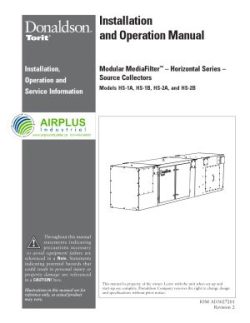

modular-MediaFilter-horizontal-source-collector-IOM
Click image to Download Manual

Choosing the Right Mist Collector for Your Facility

Choosing the proper mist-collection system for your application is dependent upon many factors. AIRPLUS Industrial has 30+ years of experience in designing, sourcing, installing and maintaining mist collection systems, we can help you choose the right system for your facility.
